Descripción
Taramp's is one of the leading brands in car audio in the world.

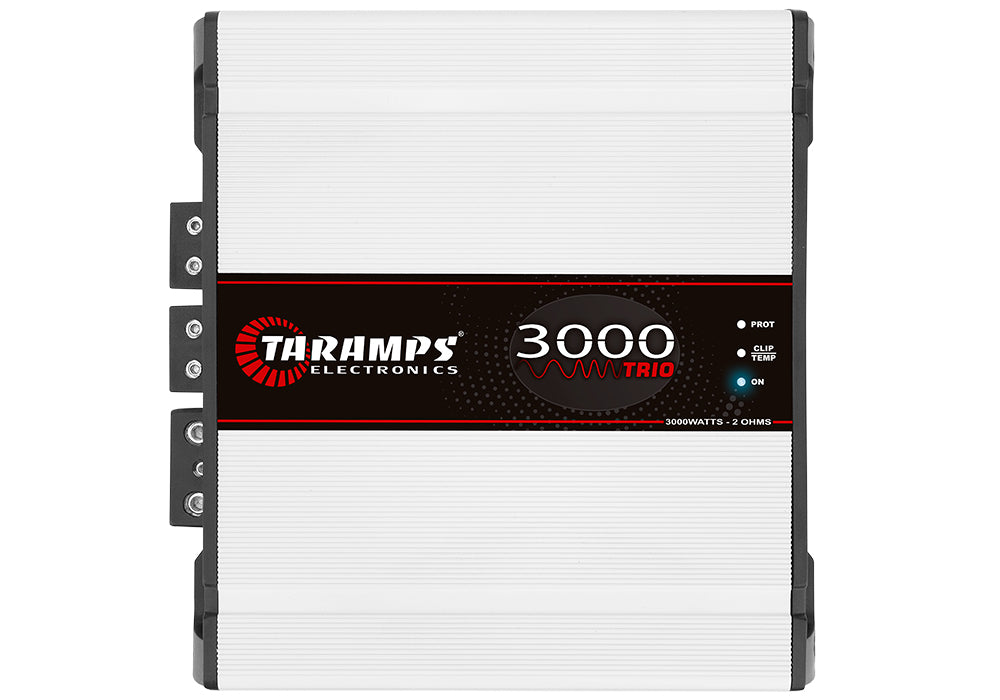

The 3000 TRIO amplifier is carefully developed with state-of-the-art technology, offering efficiency and performance for automotive audio systems. Considering it is intended for three-way acoustic setups, this product smoothly runs speakers, drivers, and tweeters. It has a maximum power of 3.000 Watts RMS, running at a 2-ohm impedance. This amplifier features a variable Crossover and two output ways, each one with an individual gain level adjustment. The low way has a limiter with three acting levels and a BASS BOOST, while the high way has a fixed limiter.
This is an excellent deal: a top-quality, high power amp for a great price.
Operation Class | Class D |
Number of channels | 1 |
Maximum power |
Low Way |
Signal to noise ratio | >88dB |
Input Sensitivity | 180mV |
Frequency response | Low Way 10Hz ~ 700Hz (X-Over Low / High = 700) 10Hz ~ 1200Hz (X-Over Low / High = 1200) Via High 700Hz ~ 20KHz (X-Over Low / High = 700) 1200Hz ~ 20KHz (X-Over Low / High = 1200) |
Crossover high pass (HPF) | 10Hz ~ 80Hz (-12dB/8th) Variable |
Crossover low pass (LPF) | 700Hz ~ 1200Hz (-12dB/8th) Variable |
Bass Boost | 0 ~ 10.5dB (50Hz) |
Limiters/Anti-Clipping | Low Way Selectable 1% / 5 % / 10% High Way Anticlip |
Thermal management | Smart Cooler (fan triggered by temperature or audio, with 3 speeds) |
Efficiency | 76% |
Input impedance | 10K Ohms |
Output impedance | 2 Ohms |
Protection system | Output short circuit or overload (across the load output terminal to ground), low or excessive supply voltage and thermal protection |
Min. supply voltage | 9 VDC |
Maximum power supply voltage | 16 VDC |
Consumption at rest | 1.60 A |
Maximum music comsumption | 165 A |
Maximum consumption in sinusoidal signal | 315 A |
Dimensions (HxWxD) | 9" x 2.56" x 8.50" |23cm x 6,5cm x 21,6cm |
Weight | 5.5 lb | 2,5kg |
