Taramp's is one of the leading brands in car audio in the world.

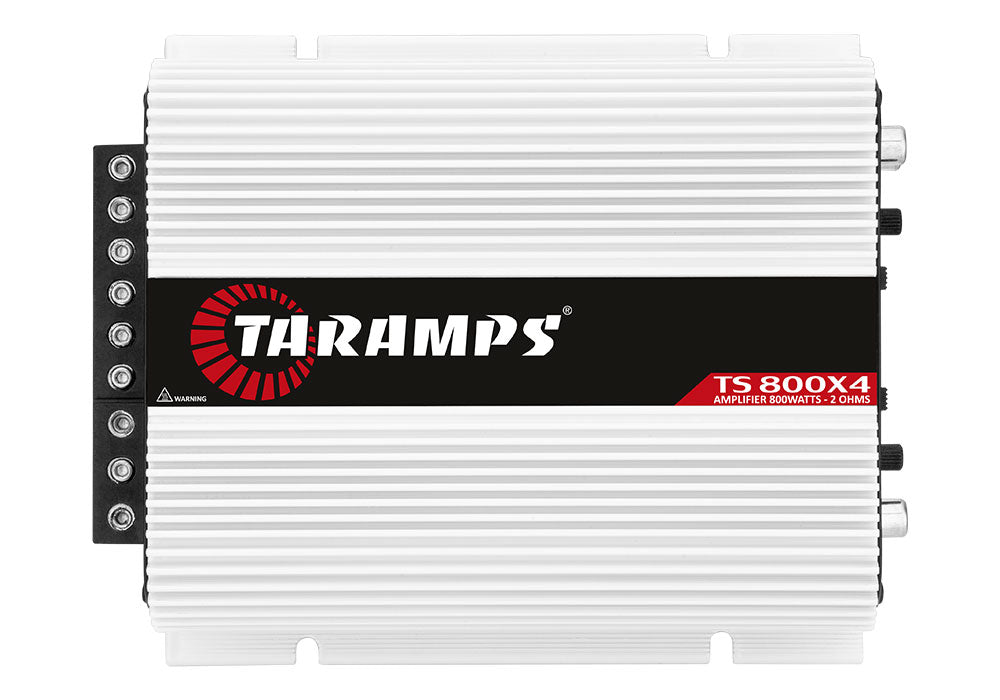

The new TS 800×4 2 Ohms with 4-channel high-level individual input and automatic activation. This feature makes it ideal for this type of application, eliminating the need for adapters.
With 800 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers and super tweeters.
In addition, it has the traditional RCA inputs, gain adjustment and fixed Crossover (HPF, LPF and Full), typical feature of Taramps products.
Another point to be highlighted is the new power and output connector, which, in addition to being robust, ensures more practicality and safety in the installation.
All this and much more, so that your pleasure in listening to music is even greater.
This is an excellent deal: a top-quality, high power amp for a great price.
OPERATION CLASS | D |
---|---|
NUMBER OF CHANNELS | 04 |
MAXIMUM POWER | @ 14,4 VDC - 2 OHMS: 800W RMS (4 x 200W RMS) @ 14,4 VDC - 4 OHMS: 544W RMS (4 x 136W RMS) 2 Bridged Channels 4 OHMS: 400W RMS (2 x 400W RMS) |
INPUT SENSITIVITY | (RCA): 4V (min.) / 250mV (max.) (WIRE): >10V (min.) / 3V (max.) |
SIGNAL TO NOISE RATIO | >90dB |
FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
CROSSOVER HIGH PASS (HPF) | 90Hz (-12dB/8ª) Fixed |
CROSSOVER LOW PASS (LPF) | 90Hz (-12dB/8ª) Fixed |
INPUT IMPEDANCE | 10K Ohms (RCA) |
PROTECTION SYSTEM | Output Short Circuit |
MIN. SUPPLY VOLTAGE | 9VDC |
MAXIMUM POWER SUPPLY VOLTAGE | 16VDC |
CONSUMPTION AT REST | 0.9A |
MAXIMUM MUSIC CONSUMPTION | 38A |
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 76A |
DIMENSIONS (WXHXD) | 5.43" x 1.89" x 6.89" (138 x 48 x 175mm) |
WEIGHT | 1.91lb (0.87Kg) |
