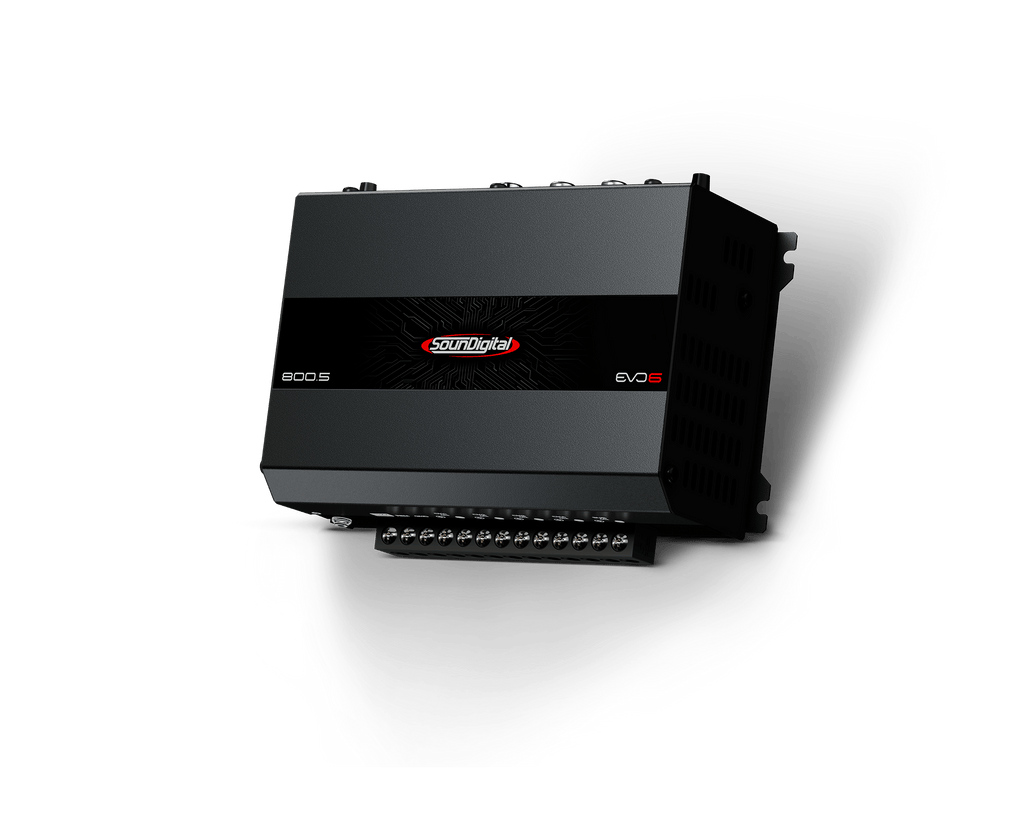

SounDigital 800.5 EVO 6 – 800W RMS 5-Channel Class D Car Audio Amplifier
Power your entire vehicle's sound system with a single compact footprint using the SounDigital 800.5 EVO 6. Designed on SounDigital's advanced EVO 6 generation platform, this 5-channel Class D amplifier combines 4 channels for door/dash speakers with a high-output fifth channel dedicated exclusively to your subwoofer.
Efficient and versatile, the 800.5 EVO 6 eliminates the need for multiple amplifiers, distribution blocks, and complex wiring setups.
EVO 6 Series Highlights & Innovations
Next-Gen Audio Architecture: Designed with modern components, redesigned power supplies, and upgraded output filters to deliver flatter frequency responses, clear highs, and deep bass.
Ultra-Compact Micro Footprint: Fits into extremely tight installation spots such as center consoles, glove boxes, under seats, or motorcycle fairings.
Smart Protection Systems: Ultra-fast electronic monitoring safeguards the amplifier against short circuits, overheating, and voltage drops.
High Efficiency & Control: Boasts 80% total efficiency and a damping factor of 200 for precise speaker cone movement and minimal electrical drain.
Technical Specifications
| Specification | Value / Details |
| 800.5 EVO 6 – 4 OHMS | |
| Power @ 4Ω (Channels 1-4) | 4 x 100W RMS |
| Power @ 8Ω (Channels 1-4) | 4 x 66W RMS |
| Subwoofer Power @ 4Ω | 1 x 400W RMS |
| Bridged Power @ 8Ω (Channels 1-4) | 2 x 200W RMS |
| Subwoofer Power @ 8Ω | N/A |
| GENERAL SPECIFICATIONS | |
| Frequency Response (-3dB) (Channels 1-4) | 80Hz ~ 25kHz |
| Subwoofer Frequency Response (-3dB) | 5Hz ~ 80Hz |
| Low Pass Filter (12dB/octave) | 80Hz |
| High Pass Filter (12dB/octave) | 80Hz |
| Operating Voltage | 9V ~ 16V |
| Signal-to-Noise Ratio (SNR) | Channels 1-4: 103.88dB | Subwoofer: 102dB |
| Input Sensitivity (RCA) | 0.2V ~ 2V |
| Musical Consumption | 39A |
| Resistive Load Consumption | 78.7A |
| Total Efficiency | 80% |
| Damping Factor (@100Hz Nominal Impedance) | 200 |
| Power Cable | 10mm² (7 AWG) |
| Speaker / Subwoofer Cable | 1.5mm² (15 AWG) / 2.5mm² (13 AWG) |
| Recommended Fuse (Musical Use) | 40A |
| Recommended Battery (Minimum) | 60Ah |
| Width | 6.18" (15.7 cm) |
| Length | 4.61" (11.7 cm) |
| Height | 2.17" (5.5 cm) |
| Weight | 1.65 lbs (0.75 kg) |
