SounDigital BassTronik 3000.1 – 3000W RMS Monoblock Class D Subwoofer Amplifier
Deliver massive, earthquake-inducing bass to your audio setup with the SounDigital BassTronik 3000.1. Engineered specifically for subwoofers, this Class D monoblock amplifier generates 3000 Watts RMS of continuous bass power in a remarkably compact chassis.
Boasting a high signal-to-noise ratio (>100dB) and an extraordinary damping factor exceeding 2000, the BassTronik 3000.1 maintains total control over subwoofer excursion, producing deep, articulate, and punchy low-end response without muddy overhang.
BassTronik Series Highlights & Innovations
Dedicated Bass Circuitry: Tailored specifically for subwoofers, covering a focused frequency band of 5Hz to 250Hz for maximum low-frequency efficiency and output clarity.
Extreme Cone Control: A damping factor higher than 2000 ensures instantaneous stop-and-start subwoofer movement, producing razor-sharp bass hits and tight low-end decay.
Comprehensive Sound Tuning: Features variable Subsonic Filtering (5Hz–40Hz) to eliminate non-audible frequencies, Low-Pass Filtering (50Hz–250Hz), and a centered 35Hz Bass Boost (+0dB to +10dB) to dial in your exact acoustic preference.

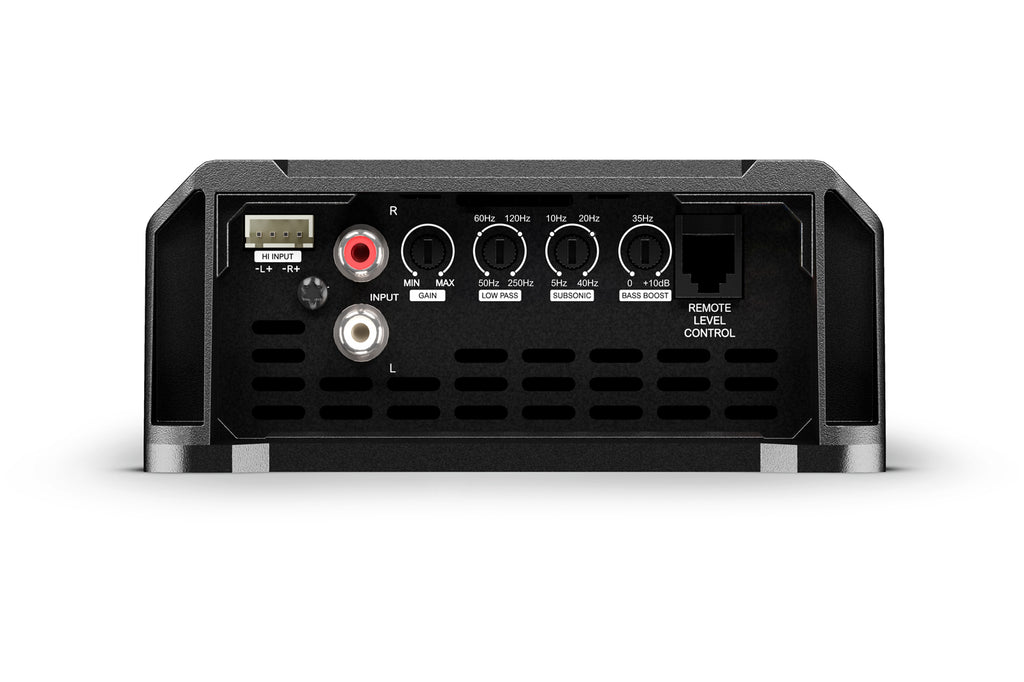

Dual Signal Inputs: Built with both standard RCA low-level inputs and High-Level (speaker level) inputs, making it simple to connect directly to OEM factory radios without requiring an external converter.
Technical Specifications
| Specification | Value / Details |
| BASSTRONIK 3000.1 – 1 OHM | |
| Power @ 1Ω | 1 x 3000W RMS |
| Power @ 2Ω | 1 x 1980W RMS |
| Power @ 4Ω | 1 x 1300W RMS |
| BASSTRONIK 3000.1 – 2 OHMS | |
| Power @ 1Ω | N/A |
| Power @ 2Ω | 1 x 3000W RMS |
| Power @ 4Ω | 1 x 1980W RMS |
| BASSTRONIK 3000.1 – 4 OHMS | |
| Power @ 1Ω | N/A |
| Power @ 2Ω | N/A |
| Power @ 4Ω | 1 x 3000W RMS |
| GENERAL SPECIFICATIONS | |
| Frequency Response (-3dB) | 5Hz ~ 250Hz |
| Subsonic Filter (12dB/octave) | 5Hz ~ 40Hz |
| Low Pass Filter (12dB/octave) | 50Hz ~ 250Hz |
| Bass Boost | 0dB ~ 10dB @ 35Hz |
| Operating Voltage | 10V ~ 16V |
| Signal-to-Noise Ratio (SNR) | > 100dB |
| RCA Input Sensitivity | 0.2V ~ 2V |
| High-Level Input Sensitivity | 1.5V ~ 15V |
| Musical Consumption | 4Ω: 149A | 2Ω: 145A | 1Ω: 151A |
| Resistive Load Consumption | 4Ω: 298A | 2Ω: 290A | 1Ω: 302A |
| Total Efficiency | 4Ω: 80% | 2Ω: 82% | 1Ω: 79% |
| Damping Factor (@100Hz Nominal Impedance) | > 2000 |
| Power Cable Wiring | 35mm² (2 AWG) |
| Speaker Cable Wiring | 4Ω: 2.5mm² (13 AWG) | 2Ω: 4mm² (11 AWG) | 1Ω: 6mm² (9 AWG) |
| Remote Cable Wiring | 1.5mm² (15 AWG) |
| Recommended Fuse (Musical Use) | 160A |
| Recommended Battery (Minimum) | 160Ah |
| Width | 5.35" (13.6 cm) |
| Length | 9.02" (22.9 cm) |
| Height | 2.13" (5.4 cm) |
| Weight | 3.90 lbs (1.77 kg) |
