Description

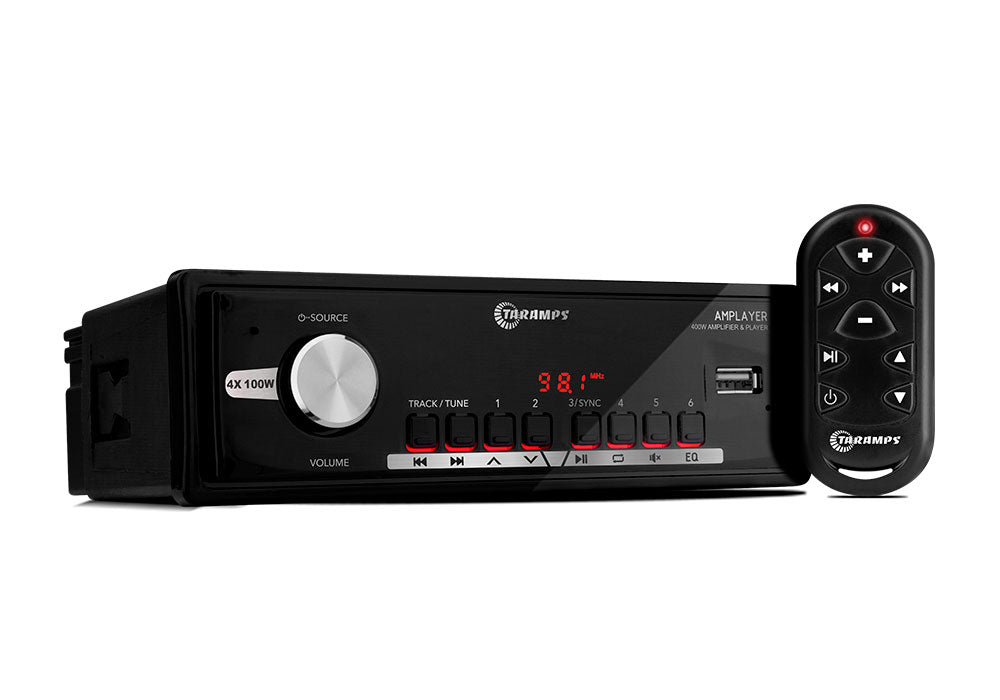

You’ve probably heard that to improve the sound inside your car you need an amplifier. This is true for most players in the market that have low output power, but with the Taramps Amplayer 400, you don’t have to worry about that. Powerful and versatile, it offers 400 WRMS (4 x 100W at 2 ohms) and allows ‘Bridge’ connections (2 x 200W at 4 ohms). In addition, it is equipped with a long-distance remote control and integrated crossovers (HPF, LPF and Full). With FM reception, USB input and smartphone connectivity (BT), it’s perfect for playing your favorite playlists, with more power and quality. You can also charge your smartphone through the USB port if it runs out of battery. All this and much more, with the advantage of taking up only the original space of a Player 1 Din in your car.
TECHNICAL INFORMATION
| NUMBER OF CHANNELS | 04 |
|---|---|
| MAXIMUM POWER | HIGH POWER MODE: Output Power @14.4VDC - 2 Ohms: 400W RMS (4x 100W RMS) Output Power @14.4VDC - 4 Ohms: 272W RMS (4x 68W RMS) 2 Bridged Channels @14.4VDC - 4 Ohms: 400W RMS (2 x 200W RMS) LOW POWER MODE: Output Power @14.4VDC - 2 Ohms: 160W RMS (4x 40W RMS) Output Power @14.4VDC - 4 Ohms: 100W RMS (4x 25W RMS) 2 Bridged Channels @14.4VDC - 4 Ohms: 160W RMS (2 x 80W RMS) |
| SOURCES | USB (MP3) / FM / BT |
| FM RANGE | 87.5 a 108 MHz, 6 memories |
| RCA OUTPUT LEVEL | 4.2Vpp (1.5V RMS) |
| REMOTE OUT CURRENT RATING | 2 Amps |
| USB RECHARGE RATING | Standard Charge 1A |
| INSTALATION SPACE | 1 DIN |
| FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
| SIGNAL TO NOISE RATIO | 72dB |
| MINIMUM SUPPLY VOLTAGE | 9VDC |
| MAXIMUM SUPPLY VOLTAGE | 16VDC |
| POWER ON CONSUMPTION | 0.5A |
| MAXIMUM CONSUMPTION | LOW POWER 14.4V DC: 14A HIGH POWER 14.4V DC: 38A |
| MUSICAL CONSUMPTION | LOW POWER 14.4V DC: 7A HIGH POWER 14.4V DC: 18.5A |
| PROTECTION SYSTEM | Output short-circuit |
| CROSSOVER | H.P.F (High Pass Filter): 90Hz (-12dB/8ª) Fixed L.P.F (Low Pass Filter): 90Hz (-12dB/8ª) Fixed |
| DIMENSIONS (WXHXD) | 7.40" x 2.28" x 5.79" (188 x 58 x 147mm) |
| WEIGHT | 2.09lb (0.95Kg) |
| ADDITIONAL INFORMATION | |
| Package Content: -02 Wire harnesses -01 Long Range Remote Control -01 Plastic monting bracket -02 Tool for unit removal -01 Taramps Cord |
|
